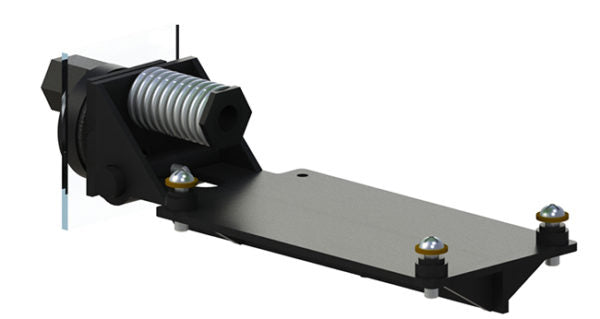

RAP30101 - AP30101 325/625 Level Sensor Bracket

HWH 325/625 Electronic Level Sensor (RAP29522) mounting bracket.

Installed on inside bottom of 325/625 control boxes. Adjusts & Holds RAP29522 level sensor in proper orientation for level reset.

Replaced obsolete RAP92302 (AP92302)

***Some control boxes need modification to accept this new part, as the hole in the side of the aluminum control box may not be large enough. Use a 7/8" step drill bit to open up/increase hole diameter to accept the new one. BE CAREFUL NOT TO GET ALUMINUM SHAVINGS ON PCB (Printed Circuit Board).
