RAP30349 - Motor/Pump/Reservoir Assembly - 2 Gallon - 4.5" Motor
RAP30349 - Motor/Pump/Reservoir Assembly - 2 Gallon - 4.5" Motor
Share
Great Instructional YouTube video from our friend Kevin Caudill HERE

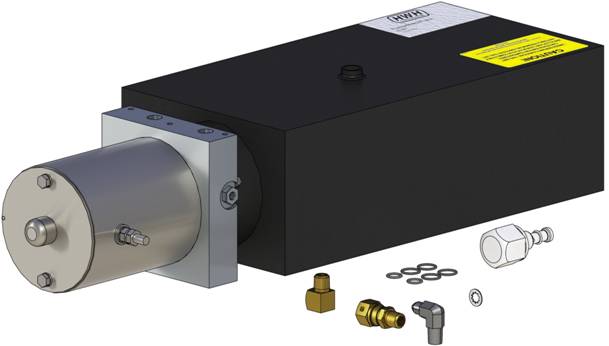

HWH PUMP/MOTOR/TANK ASSEMBLY
BUCHER® / MONARCH – 12 VOLT 4.50" MOTOR
SUPPLIED 2003 TO 2005, 2015 TO PRESENT

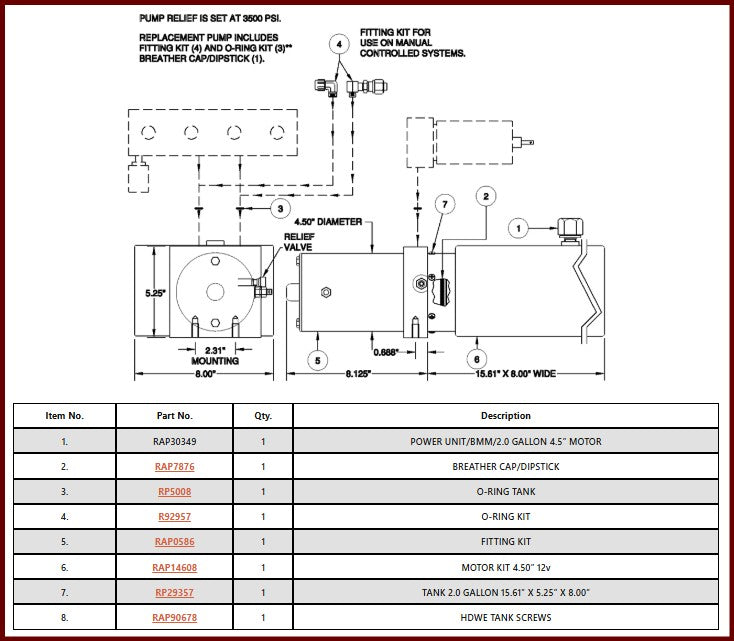

PUMP RELIEF IS SET AT 3500 PSI.
P-M-T BMM012V2.00G4.5M
Awesome How-To video from our friend, Kevin Caudill. Should help you if you plan to DIY your motor/pump/tank assembly. Same principles in this video will apply to all of the pump assembly replacements.
Low stock: 1 left
Talked to HWH tech first about symptoms. HWH tech blunt and rude. Did give us pump part number. We call RVleveling and gave them part number for checking availability. We had no idea is was a upgraded model and pump, tank and motor were larger. It was either modify brackets and/plate to hold new pump or send back. Pumps works good but jacks still do not work. Slides work good. Have 50 psi and 3500 psi. Should have returned and got regular model.
Hi Laurie,
Thanks for your review & I appreciate the pain this caused. Unfortunately, there is no other option to replace the old power unit on your coach & modification to the original installation tray is necessary. HWH cannot produce the same size as previously used for many of these older coaches.
We are happy to help diagnose issues over the phone, so if you are still struggling with your HWH system, please give us a call!
We stock & sell most common HWH parts at lower than MSRP (HWH direct price), and typically cheaper shipping!
Andre
