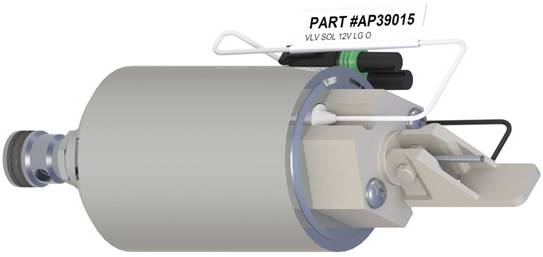

HWH Hydraulic Solenoid Valve (LARGE - 2 1/4" Diameter)
Newmar PN 030032
Winnebago PN 100532-09-704
Replaces all 12-Volt, 2.25" Diameter Hex and Cylindrical Valves
EXCEPT the following:
AP3572
AP47151
AP49601
INSTRUCTIONS – ML60078
Awesome video from our friend, RV with Tito DIY, on replacement procedure: YouTube Video
Although we don't recommend removing solenoid valves for preventative maintenance (removal can disturb/remove the lock nut setting), below are links to replaceable parts (valve comes with O-Rings & cam lever installed). If you are replacing a cam lever, you WILL need the spring installation tool!
R92101
O-Ring kit (Enough for 4 valves - large or small)
RAP92780
Valve Release Cam Kit
(Includes Cam Lever, Spring, Washer, Pivot Pin and Instruction sheet)
TS56317
Spring Installation Tool
