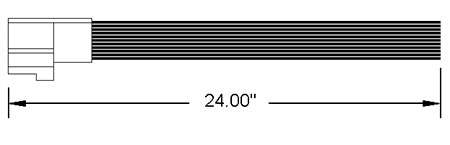

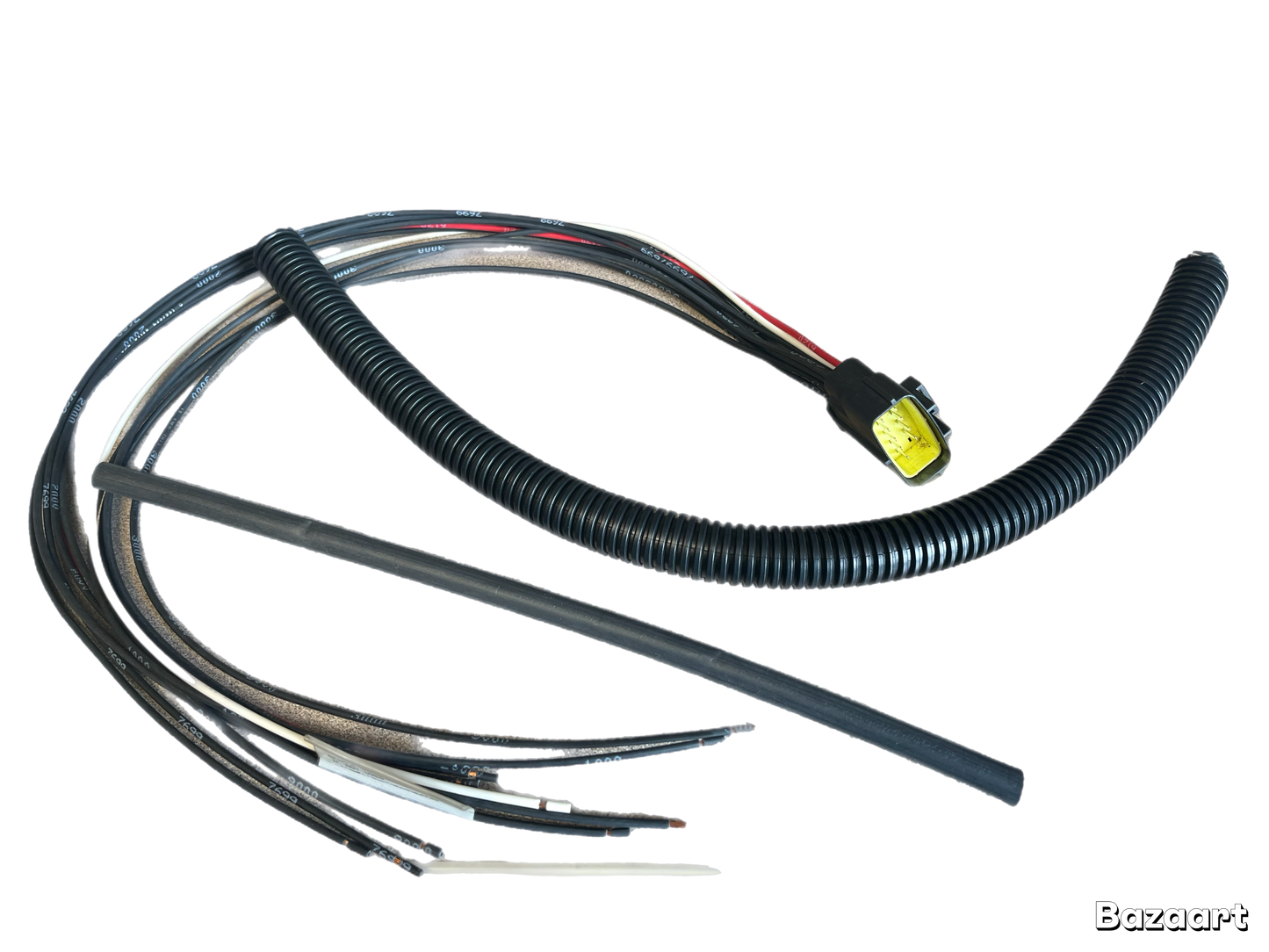

RAP91283 - 210/225 - Pigtail/Repair Wire Harness 12 pin - 24"

210/225 SYSTEMS - 24" PIGTAIL HARNESS REPAIR

IF THE EXISTING HARNESS CONTAINS ALL BLACK WIRES, MATCH THE WIRE NUMBERS.

IF THE EXISTING HARNESS CONTAINS MULTIPLE COLORED WIRES SEE DIAGRAMS BELOW.

IF NEITHER OF THESE SCENARIOS IS APPLICABLE, PLEASE CALL/EMAIL/TEXT/CHAT.

PIGTAIL >/< EXISTING HARNESS
RED (6120) >/< RED – TO 12V ACC.
WHITE (6230) >/< WHITE – GROUND MULTIPLE
BLACK (9000) >/< BLUE – TO PARK BRAKE SWITCH
BLACK (6121) >/< PURPLE – TO JACKS DOWN LIGHT
BLACK (7699) >/< BROWN – TO JACKS DOWN LIGHT
BLACK (6820) >/< BLUE – TO PUMP RELAY
BLACK (8600) >/< BLACK – TO PUMP RELAY
BLACK (1000) >/< ORANGE – TO LF JACK
BLACK (2000) >/< GRAY – TO RF JACK
BLACK (3000) >/< BLACK – TO RR JACK
BLACK (4000) >/< GREEN – TO LR JACK
