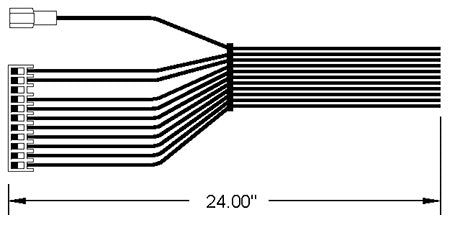

RAP91284 - Pigtail Main Wire Harness 200 Series 2'

DESIGNED FOR REPAIR OF AN EXISTING HARNESS THAT HAS BEEN DAMAGED WITHIN THE FIRST 24" OF THE VALVE BODY.
100/110/200 SYSTEMS WITH AIR DUMP

IF THE EXISTING HARNESS CONTAINS ALL BLACK WIRES, MATCH THE WIRE NUMBERS.

IF THE EXISTING HARNESS CONTAINS MULTIPLE COLORED WIRES SEE DIAGRAMS BELOW.

PIGTAIL >/< EXISTING HARNESS
RED (6120) >/< RED – TO CONTROL PANEL FUSE
BLACK (9301) >/< YELLOW – TO AIR DUMP
BLACK (9300) >/< YELLOW – TO AIR DUMP
NOT CONNECTED
BLACK (3000) >/< BLACK – TO RR JACK
BLACK (2000) >/< GRAY – TO RF JACK
BLACK (1000) >/< ORANGE – TO LF JACK
BLACK (4000) >/< GREEN – TO LR JACK
BLACK (6121) >/< PURPLE – TO JACKS DOWN LIGHT
BLACK (7699) >/< BROWN – TO JACKS DOWN LIGHT
BLACK (6820) >/< BLUE – TO PUMP RELAY
WHITE (6230) >/< WHITE – GROUND MULTIPLE
